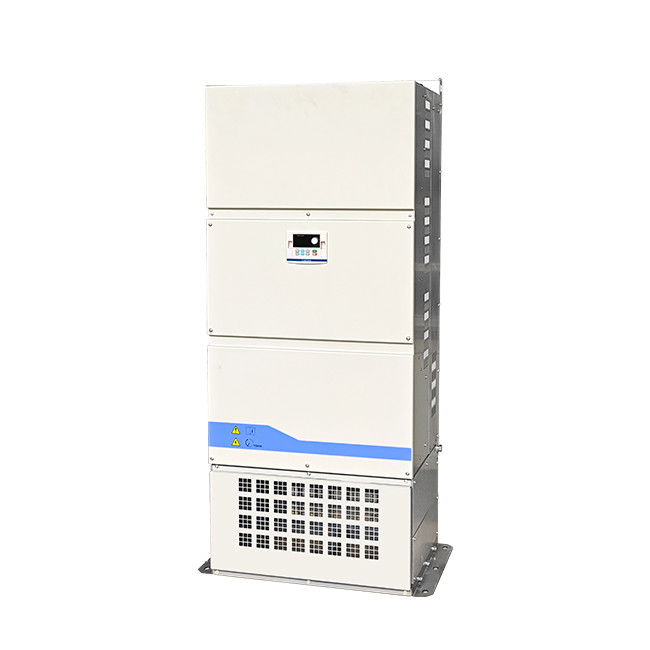

Drives Vector Frequency Inverter 315kW
  • Drives Vector Frequency Inverter 315kW
  • Drives Vector Frequency Inverter 315kW
Place of Origin Shenzhen, China
Brand Name Canroon
Certification CE ISO9001
Model Number CV900A
Minimum Order Quantity 1
Price negotiated price
Packaging Details wooden box , carton box
Delivery Time 3-7 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 3000 Piece/Pieces per Week
Product Details
Ambient Humidity 5-90%RH Non-condensing Input Frequency 50/60Hz+5%
Input Frequency Resolution Digital Setting: 0.01Hz, Analog Setting: Highest Frequency X 0.025% Position Setting CAN, RS485 Communication
Carrier Frequency 2-15kHz Cooling Method Air Cooling With Fan Control
Power Rating 7.5kW-320kW Ambient Temperature -10℃-40℃ When The Temperature Exceeds 40°C, The Usage Needs To Be Derated.
Highlight

Servo Drives Vectron Frequency Inverter

,

Hydraulic Vectron Frequency Inverter
Product Description

PMSM Driver With CAN Position Setting 7.5kW-500kW Power



Product Description:

CV900A is a high-performance universal current vector PMSM driver that can easily achieve high-performance vectorcontrol of permanent magnet synchronous motors. This driver is suitable for various automation production equipment. It has a wide range of input frequency resolution, digital setting 0.01Hz and analog setting highest frequency X 0.025%. The output voltage is three-phase AC 320V- 480V, the carrier frequency is 2-15kHz and the overload capacity is 150% rated output current for 60 seconds. The input frequency is 50/60Hz+5%, which ensures its stable operation.



Drives Vector Frequency Inverter 315kW 0





Features:

  • Product Name: CV900A PMSM Drive
  • Rated Input Current: 2.3~820A
  • Overload Capacity: 150% Rated Output Current For 60 Seconds
  • Input Voltage: 3-phase(4T): 380V 1-phase (2S): 220V
  • Output Voltage: Three-phase AC 320V- 480V
  • Power rating: 7.5kW-500kW
  • Designed specifically for driving permanent magnet synchronous motors
  • PID control





Technical Parameters:

 Parameter  Value
 Rated Input Current2.3~820A
 Output Voltage  Three-phase AC 320V- 480V
 Ambient temperature

 -10℃-40℃ When The Temperature Exceeds 40°C, The

 Usage Needs To Be Derated.
 Input Frequency Resolution  Digital Setting: 0.01Hz, Analog Setting: Highest   Frequency X 0.025%
 Cooling method  Air Cooling With Fan Control
 Input voltage  3-phase(4T): 380V 1-phase (2S): 220V
 Ambient Humidity  5-90%RH Non-condensing
 Output voltage  Three-phase 0 - 480V (Maximum Output Voltage Is   The  Same As Input Voltage)
 Overload Capacity  150% Rated Output Current For 60 Seconds
 Power rating  7.5kW-320kW
 Design  Specifically for Driving Permanent Magnet   Synchronous Motors
 Product Name  CV900A PMSM Drive

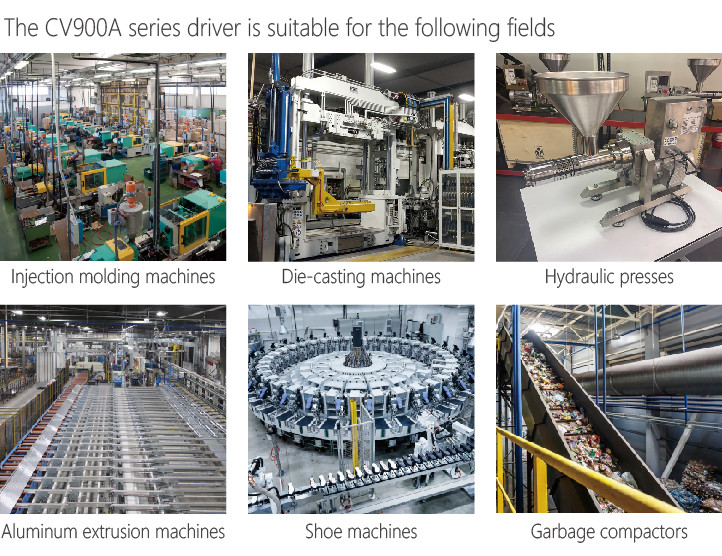

Applications:

Canroon's PMSM Drive, Model CV900A, is designed specifically for driving permanent magnet synchronous motors. It features a built-in CAN communication interface that supports a wide range of applications, including spindle motor control, positioning control, speed control, etc. The inverter's input frequency resolution is digital setting: 0.01Hz, analog setting: highest frequency X 0.025%. In addition, it is able to work in ambient humidity 5-90%RH non-condensing and ambient temperature -10℃-40℃, though its usage needs to be derated when the temperature exceeds 40°C.



Drives Vector Frequency Inverter 315kW 1



Support and Services:

We provide technical support and services for the Vector Frequency Inverter. Our services include:

  • Installation and setup of the Vector Frequency Inverter
  • Troubleshooting and repairs of Vector Frequency Inverter components
  • Software updates and upgrades for the Vector Frequency Inverter
  • Guidance on optimization of the Vector Frequency Inverter
  • Training and education on the Vector Frequency Inverter



Drives Vector Frequency Inverter 315kW 2



FAQ:

Q: What is the brand name of the Vector Frequency Inverter?
A: The brand name of the Vector Frequency Inverter is Canroon.

Q: What is the model number of the Vector Frequency Inverter?
A: The model number of the Vector Frequency Inverter is CV900A.

Q: Where is the Vector Frequency Inverter manufactured?
A: The Vector Frequency Inverter is manufactured in Shenzhen, China.

Q: What certifications does the Vector Frequency Inverter have?
A: The Vector Frequency Inverter has CE and ISO9001 certifications.

Q: How many Vector Frequency Inverters can be supplied per week?
A: The Vector Frequency Inverter can supply up to 3000 pieces per week.



Drives Vector Frequency Inverter 315kW 3

Drives Vector Frequency Inverter 315kW 4
