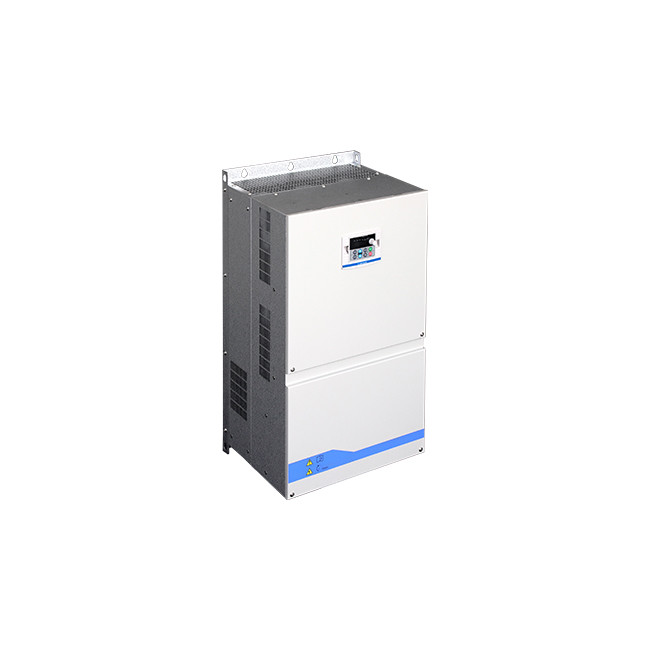

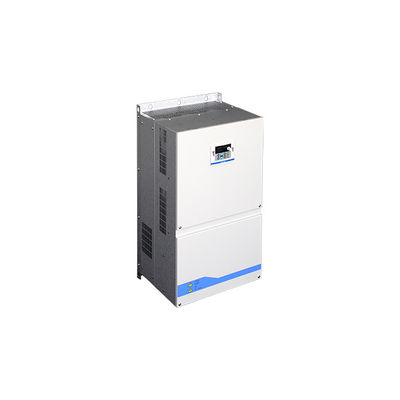

7.5kW Vector Frequency Inverter Power PMSM Driver
Product Details
| Position Setting | CAN, RS485 Communication | Motor Protection | Overload Protection, Supports KTY, PTC Temperature Protection |
|---|---|---|---|
| Overload Capacity | 150% Rated Output Current For 60 Seconds | Power Rating | 7.5kW-320kW |
| Ambient Temperature | -10℃-40℃ When The Temperature Exceeds 40°C, The Usage Needs To Be Derated. | Input Frequency | 50/60Hz+5% |
| Protection Level | IP20 | Carrier Frequency | 2-15kHz |
| Highlight | 7.5kW Vector Frequency Inverter,PMSM Driver Vector Frequency Inverter,7.5kW Vector Power Inverter |
||
Product Description
PMSM Driver High-Response Pressure And Flow Control System 2000Hz Max Speed 3-Phase 380V/1-Phase 220V
Product Description:
CV900A PMSM driver is designed to provide a high-performance universal current vector PMSM driver, achieving high-response pressure and flow control. It is equipped with a high-precision digital signal processor to ensure the accuracy of the output current and voltage. It has an ambient humidity range of 5-90%RH Non-condensing, maximum speed of converted to 2000Hz according to the output frequency, protection level of IP20, and position setting of CAN, RS485 Communication. It also provides three-phase 0 - 480V output voltage, with a maximum output voltage the same as input voltage.
The driver is suitable for various automation production equipment drives.such as aluminum extrusion, hydraulic presses, shoe machines, garbage compactors.die-casting machines, injection molding machines, etc.
Features:
- Product Name: CV900A PMSM driver
- Carrier Frequency: 2-15kHz
- Output Voltage: Three-phase AC 323V- 528V
- Ambient temperature: -10℃-40℃ When The Temperature Exceeds 40°C, The Usage Needs To Be Derated.
- Rated Input Current: 20~580A
- Protection level: IP20
- Can easily achieve high-performance vectorcontrol of permanent magnet synchronous motors
- Built-in CAN communication interface
- Multi-function digital input and output port
Technical Parameters:
| Parameter | Description |
| Ambient temperature |
-10℃-40℃,When The Temperature Exceeds 40°C, The Usage Needs To Be Derated. |
| Protection level | IP20 |
| Overload Capacity | 150% Rated Output Current For 60 Seconds |
| Carrier Frequency | 2-15kHz |
| Motor Protection | Overload Protection, Supports KTY, PTC Temperature Protection |
| Ambient Humidity | 5-90%RH Non-condensing |
| Maximum Speed | Converted To 2000Hz According To The Output Frequency |
| Input frequency | 50/60Hz+5% |
| Input Frequency Resolution | Digital Setting: 0.01Hz, Analog Setting: Highest Frequency X 0.025% |
| Rated Input Current | 20~580A |
| Suitable for | Various automation production equipment, designed specifically for driving permanent magnet synchronous motors, can easily achieve high-performance vectorcontrol of permanent magnet synchronous motors, and has excellent torque control characteristics. |
Applications:
The driver is suitable for various automation production equipment drives.such as aluminum extrusion, hydraulic presses, shoe machines, garbage compactors.die-casting machines, injection molding machines, etc.
Canroon's Vector Frequency Inverter (Model Number: CV900A) is a high-performance universal current vector PMSM driver, designed specifically for driving permanent magnet synchronous motors. It has a Built-in CAN communication interface to ensure communication stability, overload protection, KTY, PTC temperature protection, and a maximum speed of 2000Hz, according to the output frequency. It is certified by CE and ISO9001, and has a rated input current of 20~580A, a power rating of 7.5kW-320kW, and an output voltage of Three-phase AC 323V- 528V. Canroon's Vector Frequency Inverter is the ideal choice for those who need a reliable and high-performance solution.
Support and Services:
Vector Frequency Inverter Technical Support and Service
Vector Frequency Inverter is a product offering a wide range of features and benefits for customers across industries. We are committed to providing our customers with the highest quality of technical support and service for this product.
Our technical support staff are highly trained and knowledgeable professionals who are available to answer any questions you may have. We are dedicated to providing quick and accurate responses to all inquiries.
We provide reliable service and maintenance for Vector Frequency Inverters. Our technicians are experienced in working with Vector Frequency Inverters and can diagnose and repair any issues you may face. We guarantee that all parts and services are of the highest quality.
Our customer service team is available to help with any questions or concerns you may have about Vector Frequency Inverter. We are dedicated to providing prompt and courteous service.
We strive to ensure that our customers are completely satisfied with their Vector Frequency Inverters. If you have any questions or concerns, please don’t hesitate to contact us.
FAQ:
Q1: What is the Brand Name for the Vector Frequency Inverter?
A1: The Brand Name is Canroon.
Q2: What is the Model Number for the Vector Frequency Inverter?
A2: The Model Number is CV900A.
Q3: What is the Place of Origin for the Vector Frequency Inverter?
A3: The Place of Origin is Shenzhen, China.
Q4: What is the Minimum Order Quantity for the Vector Frequency Inverter?
A4: The Minimum Order Quantity is 1.
Q5: What Certifications does the Vector Frequency Inverter have?
A5: It has CE and ISO9001 Certifications.
