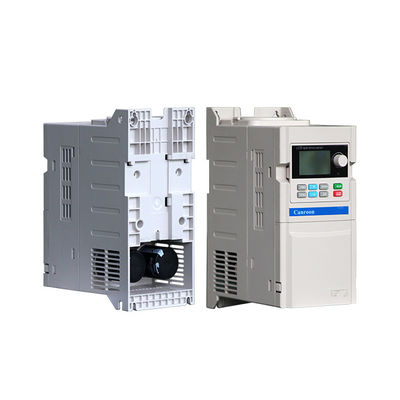

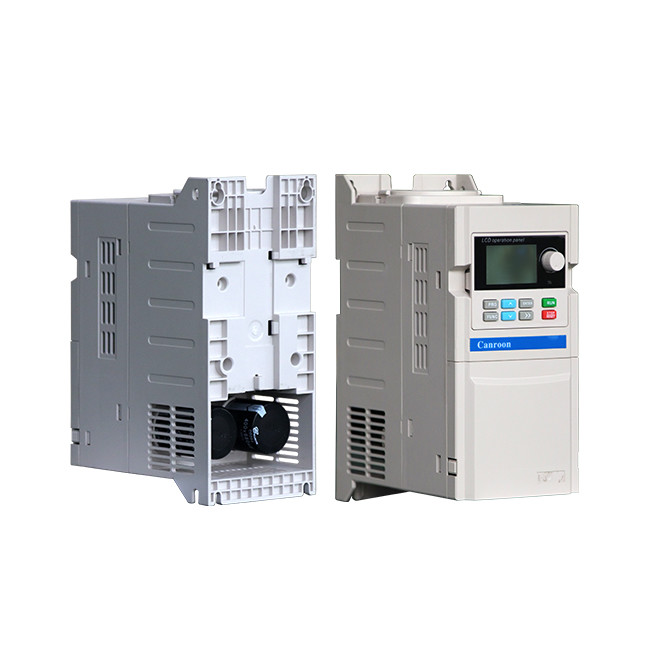

3 Phase Variable Frequency Converter ISO With PG Vector Control
Product Details
| Control Mode | V/F Control, Advanced V/F Control, V/F Separation Control, Electric Current Vector Control | Input Frequency | 47Hz / 63Hz |
|---|---|---|---|
| Overload Capacity | G Type: 110% For Long-term, 150% For 1 Min, 180% For 5s P Type: 105% For Long-term, 120% For 1 Min, 150% For 1s | Output Frequency | Low Frequency Mode: 0-300Hz; High Frequency Mode: 0-3000Hz |
| Humidity | ≤90%RH | Ambient Temperature | -10℃~+40℃ |
| Input Voltage | 3-phase (4T) :320V~480V 1-phase(2S): 160V~260V | Output Voltage | 4T : 0~480V 2S : 0~260V |
| Highlight | 3 Phase Variable Frequency Converter,PG Vector Control Variable Frequency Converter,PG Vector Control 3 Phase Converter |
||
Product Description
3-Phase 320V-480V Variable Frequency Converter With 47Hz/63Hz Input Frequency & 0.1% Analog Input
Product Description:
Variable Frequency Converter is a device that can convert the input frequency (47Hz / 63Hz) and voltage (3-phase (4T) :320V~480V 1-phase(2S): 160V~260V) into output frequency and voltage. It has a wide power range from 0.4KW-11KW. It is renowned for its high control precision of speed, V/F control, and high control precision of speed. The device also offers an analog output of within 0.2% of maximum output frequency and an analog input of 0.1% of maximum output frequency. This Variable Frequency Converter is an ideal choice for applications that require high precision in controlling speed and voltage.
Features:
- Product Name: Variable Frequency Converter
- Frequency Resolution: 0.01Hz
- Output Voltage: 4T : 0~480V 2S : 0~260V
- Input Frequency: 47Hz / 63Hz
- Analog Input: 0.1% Of Maximum Output Frequency
- Overload Capacity:
- G Type: 110% For Long-term, 150% For 1 Min, 180% For 5s
- P Type: 105% For Long-term, 120% For 1 Min, 150% For 1s
- Electric Current Vector Control: Advanced V/F Control, V/F Control With PG Vector Control
Technical Parameters:
| Parameter | Description |
|---|---|
| Control Mode | V/F Control, Advanced V/F Control, V/F Separation Control, Electric Current Vector Control |
| Altitude | ≤1000m |
| Input Voltage | 3-phase (4T) :320V~480V 1-phase(2S): 160V~260V |
| Frequency Precision Digital Setting | Within 0.01% Of Set Output Frequency |
| Output Voltage | 4T : 0~480V 2S : 0~260V |
| Analog Output | Within 0.2% Of Maximum Output Frequency |
| Overload Capacity | G Type: 110% For Long-term, 150% For 1 Min, 180% For 5s P Type: 105% For Long-term, 120% For 1 Min, 150% For 1s |
| Analog Input | 0.1% Of Maximum Output Frequency |
| Output Frequency | Low Frequency Mode: 0-300Hz; High Frequency Mode: 0-3000Hz |
| Input Frequency | 47Hz / 63Hz |
| High Control Precision of Speed | Within 0.01% Of Set Output Frequency |
| Good Reliability | Electric Current Vector Control for stable output |
Applications:
Canroon's Variable Frequency Converter, Model Number CV900G, is a reliable solution for perfect load adaptability and high control precision of speed. Coming from Shenzhen, China, it is a product with CE and ISO9001 certification, and a minimum order quantity of 1. The price is negotiable, and it is packaged in wooden box or carton box. The delivery time is short, typically 5-7 days, and it supports payment via L/C, T/T, Western Union, Paypal. With a supply ability of 3000 Piece/Pieces per week, the Variable Frequency Converter features an analog output of Within 0.2% Of Maximum Output Frequency, a power of 0.4KW-11KW, and an input frequency of 47Hz / 63Hz. It can be used in an altitude of ≤1000m and an ambient temperature of -10℃~+40℃.
Support and Services:
Variable Frequency Converter Technical Support and Service
We provide technical support and services for our Variable Frequency Converter product. Our team of dedicated technical experts will answer any questions you have and provide you with the assistance you need to ensure your success. We offer a range of services, including:
- Installation and setup of the Variable Frequency Converter.
- Troubleshooting and diagnostics.
- Maintenance and repairs.
- Firmware and software updates.
- Product customization.
- Training and support.
If you need help with your Variable Frequency Converter, please do not hesitate to contact us.
FAQ:
Q1: What is the brand name of this Variable Frequency Converter?
A1: The brand name of this Variable Frequency Converter is Canroon.
Q2: What is the model number of this Variable Frequency Converter?
A2: The model number of this Variable Frequency Converter is CV900G.
Q3: Where is this Variable Frequency Converter made?
A3: This Variable Frequency Converter is made in Shenzhen, China.
Q4: What certifications does this Variable Frequency Converter have?
A4: This Variable Frequency Converter has CE and ISO9001 certification.
Q5: What is the minimum order quantity of this Variable Frequency Converter?
A5: The minimum order quantity of this Variable Frequency Converter is 1.
