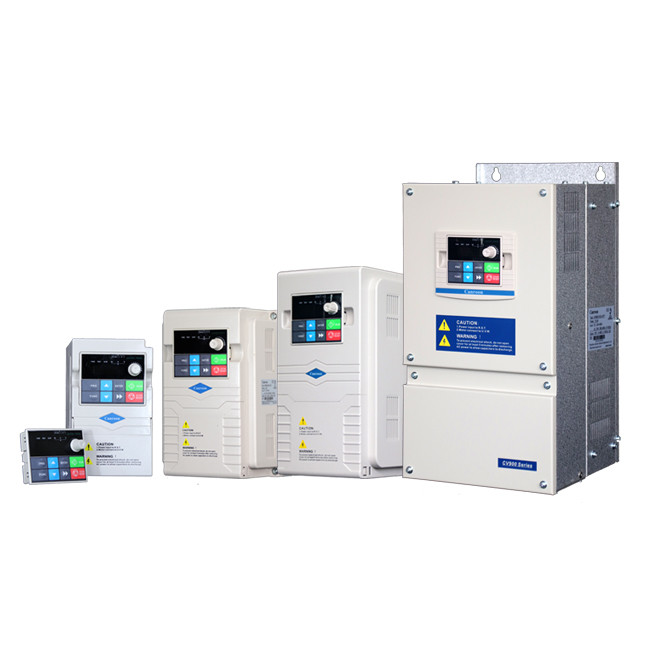

Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump
  • Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump
  • Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump
  • Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump
Place of Origin Shenzhen CHINA
Brand Name Canroon
Certification CE
Model Number CV900S-002-12SF
Minimum Order Quantity 1 piece
Price 75-110usd/piece
Packaging Details woodon case, carton or customized
Delivery Time 3-7days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000 pieces a month
Product Details
Type DC/AV Inverter Output Type Multiple
Output Frequency 50Hz/60Hz Application Solar Pump
Rated Power 3hp Control Mode Vector Control, V/f Control
Warranty 18months Sample Lead Time 1-3 Days
Bulk Order Lead Time 10-25 Days Rate Power 2.2kw
Input Voltage 380V
Product Description

Product Desciption

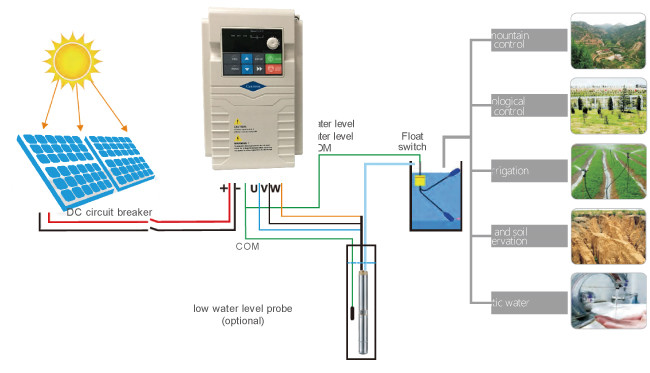

Solar pump system consists of 3 parts: solar cell array, solar inverter and pump. CV900S series solar pump inverter are specially designed and manufactured for this system by Canroon, using electric energy generated by solar panel to power water pump, and deliver water from underground or river to applications like farm irrigation, desert greening, garden fountain, etc.





Product Feature

A variable frequency Drive/Inverter (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage of its power supply. The VFD also has the capacity to control ramp-up and ramp-down of the motor during start or stop, respectively. Even though the inverter controls the frequency and voltage of power supplied to the motor, it is often refered to this as speed control. The result is an adjustment of motor speed.



Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump 0







Specification

Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump 1

nput Rated Voltage, Frequency

3-phase(4T#sereis)380V;50/60HZ

1-phase(2S#series)220V;50/60HZ
Allowed Voltage Range

3-phase(4T#series)320V~480V

1-phase(2S#series)160V~260V
Output Voltage

4T#series; 0~480V

2S#series; 0~260V
Frequency Low frequency mode: 0~300HZ ; High frequency mode: 0~3000HZ
Overload Capacity

G type: 110% for long-term, 150% for 1 min, 180% for 5s

P type: 105% for long-term, 120% for 1 min, 150% for 1s
Control Mode V/F control, advanced V/F control, V/F separation control, electric current vector control



Series



Specification model



Rated output power (KW)



Max.DC input current (A)



 Rated output current (A)

Ac Input Voltage (V)



Recommended DC Input Voltage (V)



1-Phase

220V Input /

3-Phase Output



 CV900S-00BG-12SF 0.75 7.5 4.5

220~260V

(1-Phase)



200~390V


CV900S-001G-12SF 1.5 10 7.0
CV900S-002G-12SF 2.2 18 10
CV900S-003G-12SF 3.0 24 13
CV900S-004G-12SF 3.7 28 16
CV900S-005G-12SF 5.5 36 20
CV900S-007G-12SF 7.5 54 30
CV900S-0011G-12SF 11 75 42

3-Phase

380V Input



 CV900S-00BG-14TF 0.75 4.5 2.5

380~480V

(3-Phase)



300~750V


CV900S-001G-14TF 1.5 7.5 3.7
CV900S-002G-14TF 2.2 10 5.0
CV900S-004G-14TF 3.7 18 9.0
CV900S-005G-14TF 5.5 20 13
CV900S-007G-14TF 7.5 30 17
CV900S-011G-14TF 11 40 25
CV900S-015G-14TF 15 50 32
CV900S-018G-14TF 18.5 60 37
CV900S-022G-14TF 22 80 45
CV900S-030G-14TF 30 100 60
CV900S-037G-14TF 37 119 75

Applications



Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump 2

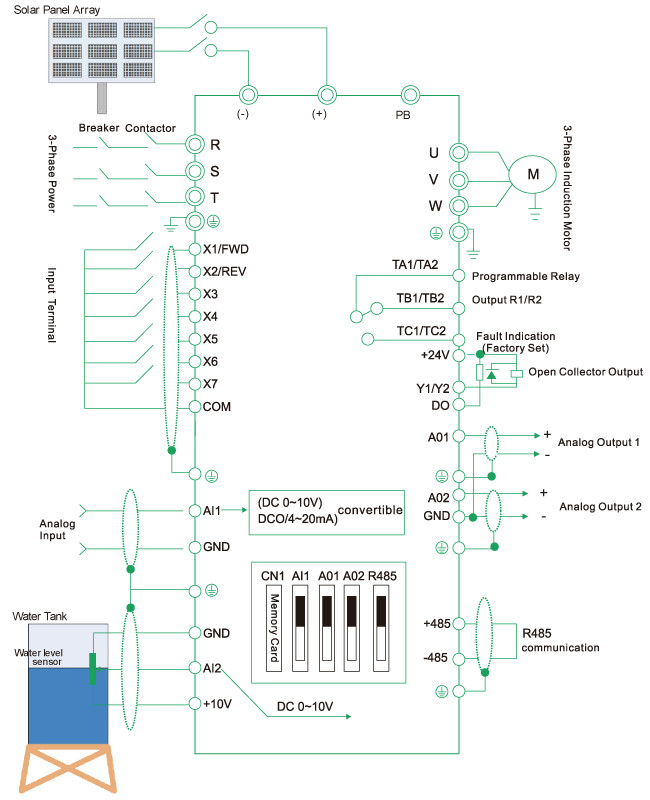

Basic Running Wiring
The wiring parts of inverter include major loop and control loop. Open the cover of I/O terminals, users can see the major loop terminal and control loop terminal, and must conduct the wiring according to the following diagram.

Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump 3

Certificate

Single Phase 3hp CV900S-002-12SF Variable Frequency Converter For Solar Pump 4

Payment Terms

  • Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); Trade assurance from Alibaba with 20000 dollars
  • MOQ: 1 set;
  • Warranty: 18 months



Shipping ways

  • Fedex/DHL/UPS/TNT for samples, door to door;
  • By air or by sea for batch goods for FCL, airport/port receving;
  • Customers specifying freight forwarders for negotiable shipping nethods.
  • Delivery time: 3~7 days for samples, 10~25days for bulk order goods.
