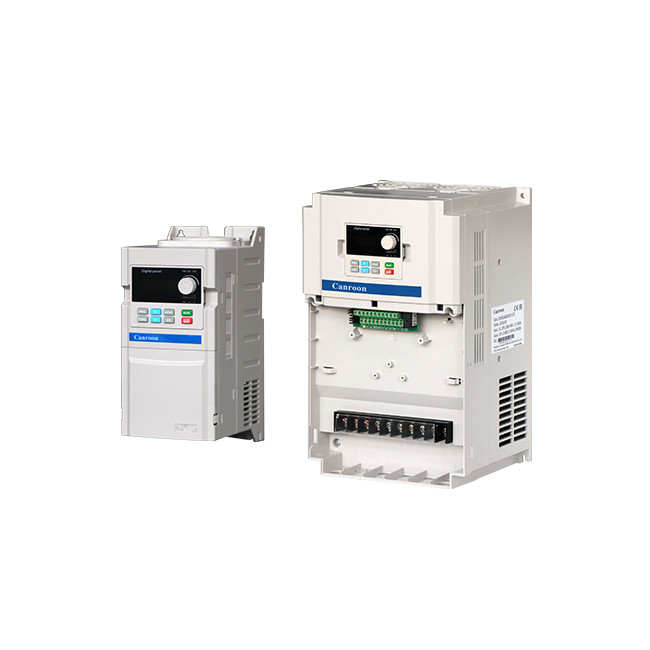

50Hz 2.2 Kw Frequency Inverter F Insulated Input 220V~380V Speed Regulation
Product Details
| Output Voltage | 0-220V | Protection Level | IP20 |
|---|---|---|---|
| Ambient Temperature | -10℃~+40℃ | Ambient Humidity | 5-90%RH Non-condensing |
| Maximum Speed | Converted To 2000Hz According To The Output Frequency | Input Frequency | 50/60Hz+5% |
| Carrier Frequency | 2-15kHz | Rated Voltage And Frequency | Three-phase AC 323V ~ 528V |
| Highlight | 50Hz 2.2 Kw Frequency Inverter,380V 2.2 Kw Frequency Inverter |
||
Product Description
Frequency Drive Inverter F Insulated Input 220V~380V Speed Regulation 1100
Product Description:
Frequency Drive Inverter
Frequency Drive Inverter (VFD) is an AC motor drive that provides powerful control and speed regulation of AC motors. It is widely used in various applications and offers a speed regulation range of 1:100 with a speed regulation accuracy of ±0.5%. With an output power of 2.2kW and a protection level of IP20, it can be safely operated even at altitudes up to 1000m. VFD is a great tool to reduce the energy consumption, improve the motor performance and extend the service life of the motor.
Features:
- Product Name: Frequency Drive Inverter
- Insulation Grade: F
- Noise: ≤60dB
- Input Voltage: 220V~380V
- Speed Regulation Range: 1:100
- Speed Control Mode: V/F
- Applications of VFD: Motor Speed Control, Torque Control, Positioning Control, etc.
Technical Parameters:
| Characteristics of frequency converter products | AC Motor Drive |
|---|---|
| Protection Level | IP20 |
| Output Frequency | 0-400Hz |
| Insulation Grade | F |
| Input Voltage | 220V~380V |
| Noise | ≤60dB |
| Output Power | 2.2kW |
| Ambient Temperature | -10℃~+40℃ |
| Speed Control Mode | V/F |
| Output Voltage | 0-220V |
| Speed Regulation Accuracy | ±0.5% |

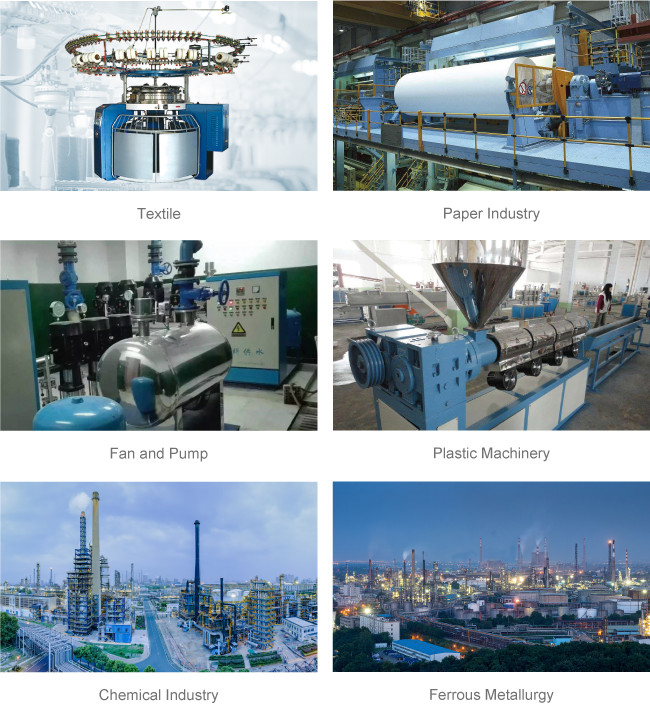

Applications:
Applications & Scenarios of Canroon CV900G Frequency Drive Inverter
Canroon CV900G Frequency Drive Inverter, with a place of origin in Shenzhen, China, offers a 2.2kW output power with a speed regulation accuracy of ±0.5%, making it an ideal choice for variable speed control in many industries. With a V/F speed control mode and an input frequency of 50/60Hz, it is capable of working at altitudes under 1000m, making it a perfect choice for a wide range of applications.
The Canroon CV900G Frequency Drive Inverter is designed for a variety of motor control applications. It can be used to control the speed of pumps, fans, and other motor-driven equipment, ensuring smooth and accurate speed control with minimal vibration and noise. It is also suitable for applications such as weaving, printing, packaging, grinding, and other industrial processes. In addition, the use of the Canroon CV900G Frequency Drive Inverter can also reduce energy consumption, thus reducing operating costs.
The Canroon CV900G Frequency Drive Inverter has several key features that make it the perfect choice for applications that require precise and reliable speed control. It has a wide speed range, allowing for accurate speed control in a variety of applications. It also has a high-precision speed regulation accuracy, ensuring that speeds remain consistent even under varying conditions. Furthermore, its low noise and vibration levels make it suitable for use in noise-sensitive environments, such as hospitals and laboratories.
The Canroon CV900G Frequency Drive Inverter is the ideal choice for applications that require precise and reliable speed control. Its wide speed range, high-precision speed regulation accuracy, and low noise and vibration levels make it perfect for a variety of motor control applications. With its place of origin in Shenzhen, China, it is the perfect choice for applications that require reliable and precise speed control.
Packing and Shipping:
Packaging and Shipping of Frequency Drive Inverter:
The Frequency Drive Inverter will be shipped in a double-walled cardboard box to ensure its safe arrival. The interior of the box will be lined with foam or other cushioning material to prevent any damage during transit. The box will be securely sealed with an adhesive tape to protect the product from the environment.
The product will be further secured with additional packaging materials such as bubble wrap or foam. The package will also be labeled clearly with an address label, a return address label, and a tracking number for easy tracking and delivery.
FAQ:
- Q: What is the brand of the frequency drive inverter?
- A: The brand of the frequency drive inverter is Canroon.
- Q: What is the model number of the frequency drive inverter?
- A: The model number of the frequency drive inverter is CV900G.
- Q: Where is the frequency drive inverter manufactured?
- A: The frequency drive inverter is manufactured in Shenzhen, China.
- Q: What are the features of the frequency drive inverter?
- A: The features of the frequency drive inverter include adjustable speed, high efficiency, and low noise.
- Q: What types of motors can the frequency drive inverter control?
- A: The frequency drive inverter can control AC induction motors, permanent-magnet motors, and servo motors.
